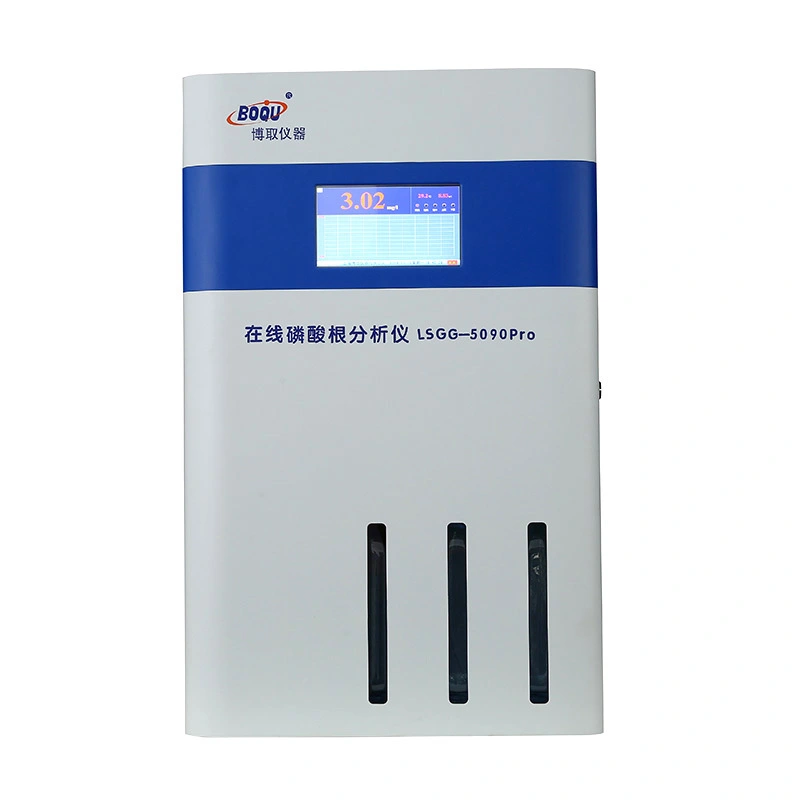

Industrial Phosphate Analyzer LSGG-5090
LSGG-5090 INDUSTRIAL PHOSPHATE METER
LSGG-5090 type industrial online phosphate analyzer, dopts special air rabbling and optoelectronics examination technique, make chemical react quickly and measure accuracy outstanding, optoelectronics examination and chart text display. Adopt colorful liquid crystal display, with the prolific color, character, chart and curve etc.
It can be widely used in thermal power plants, chemical industry and other departments, timely and accurate phosphate content of the water is monitoring to ensure crew working safely, economic, especially for the scene environment.
TECHNICAL INDEXES
| Measuring principle | phosphorus molybdenum alum yellow photoelectric colorimetry |
Measuring range | 0 ~ 2000μg / L, 0 ~ 10mg / L, 0~100mg / L optional |
Accuracy | ±1% F.S |
Repeatability | ±1% F.S |
Stability | Drift ≤ ± 1% F.S / 24hours |
Response time | Initial response, four minutes, six minutes to reach at least 98% |
Sampling period | 3 minutes / Channel |
Working conditions | Flow> 2 ml / sec. |
Temperature: 10 ~ 45 ℃ | |
Pressure: 10 kPa ~ 100 kPa | |
Environmental conditions | Temperature: 5 ~ 45 ℃, Humidity: <85% RH (accuracy will be down if over 40 ℃) |
Reagent consumption | One kind and about 3 liters / month |
Current output | 4 ~ 20mA (one channel with one 4 - 20mA) |
Alarm output | Normally open relay contacts 220V/1A |
Power supply | AC220V ± 10% 50HZ |
Power consumption | ≈ 50W |
| Communication | RS485 Modubs |
Dimensions | 720mm (height) × 460mm (width) × 300mm (depth) |
Hole size | 665mm × 405mm |
MAIN FEATURES
