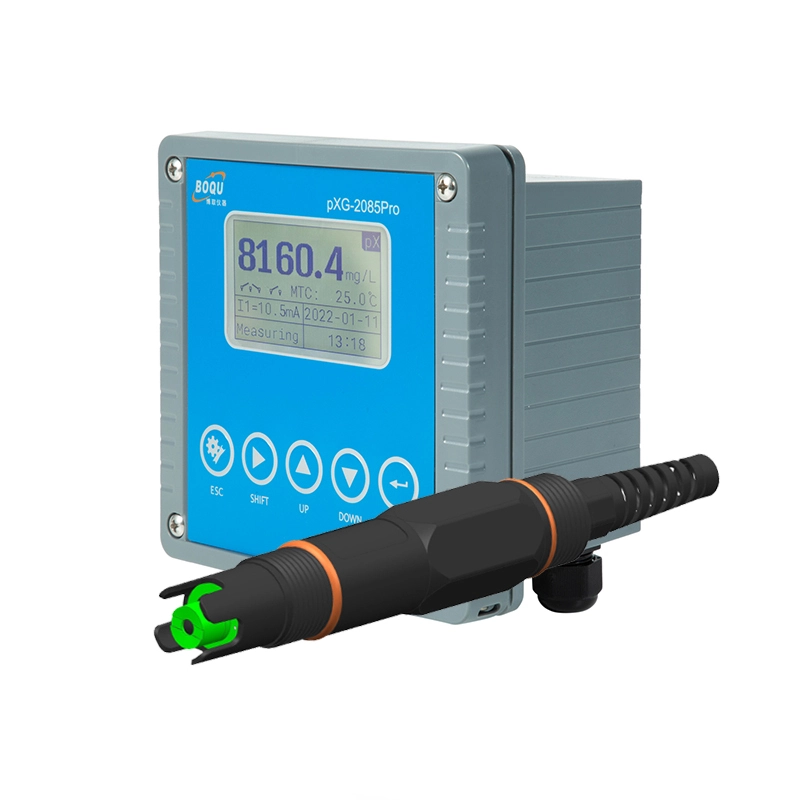

PXG-2085Pro Online Chloride Ion Meter
PXG-2085Pro
ONLINE CHLORIDE ION METER
The BOQU PXG-2085Pro Online Chloride Ion Meter offers a new way of chloride monitoring in different water application. The chloride Ion analyzer adopts advanced ion-selective electrode (ISE) technology for online continuous monitoring of chloride ion concentration in water effluent. The chloride ion electrode of the PXG-2085Pro online chloride ion meter made with a molded chloride solid membrane.The working life of the chloride ion electrode (ISE) is over one year, because the ion sensor membrane is special designed by BOQU Instrument and it can be replaced in period according to water quality at site.so it can save much maintenance cost.
The PXG-2085Pro Online chloride Ion meter uses is latest micro-computer based high-end instrument. The ion controller has 3 ways of relay control, 2 ways of 4-20mA and standard RS485 Modbus.the online chloride Ion controller has a user-friendly interface, easy use, long working life, local data recording function
It’s designed for process monitoring and controlling in most water application.such asIndustrial, wastewater, drinking water, food/beverage, environmental chloride ion measurement
TECHNICAL PARAMETERS
| Instrument | PXG-2085PRO Online Chloride Ion Meter |
Parameters | Chloride Ion(Cl-), Temperature |
Chloride ion range | 0.02 ppm ~ 35 000 ppm |
Resolution | 0.01(<1ppm), 0.1 (<10ppm), 1(others) |
Accuracy | ±0.01ppm,±0.1ppm,±1ppm |
Temp. compensation | Pt 1000/NTC10K |
Temp. range | -10.0 to +130.0℃ |
Temp. compensation range | -10.0 to +130.0℃ |
Temp. resolution | 0.1℃ |
Temp. accuracy | 0.2℃ |
Ambient temperature range | 0 to +70℃ |
Storage temp. | -20 to +70℃ |
Input impedance | >1012Ω |
| Interface ion | OH- |
Display | Back light, dot matrix |
Output | 2 ways of 4-20mA , max. load 500Ω |
Communcation | RS485 Modbus RTU |
Relays | with 3 relays(High/Low control and Clean) |
Relay delay | 0-120 seconds |
Data recording capacity | 1,000 |
Language selection | English/traditional Chinese |
Waterproof grade | IP65 |
Power supply | 90 ~ 260V AC 50/60Hz .4W |
Installation | Panel/wall/pipe installation |
MAIN FEATURES
Wide chloride ion continuous measurement :0~35 000mg/L
Long working life and chloride ion sensor membrane can be replaced and save user’s maintenance cost
Local data recording function for 1000 times and History data curve.
The power range is 90 ~ 260V AC 50/60Hz and suitable all countries.
Anti-electromagnetic interference and Surge protection ; uPower-off protection function, save measurement data completely.
2 ways of 4-20mA , 3 relays for High/low control and clean and standard RS485 Modbus.
