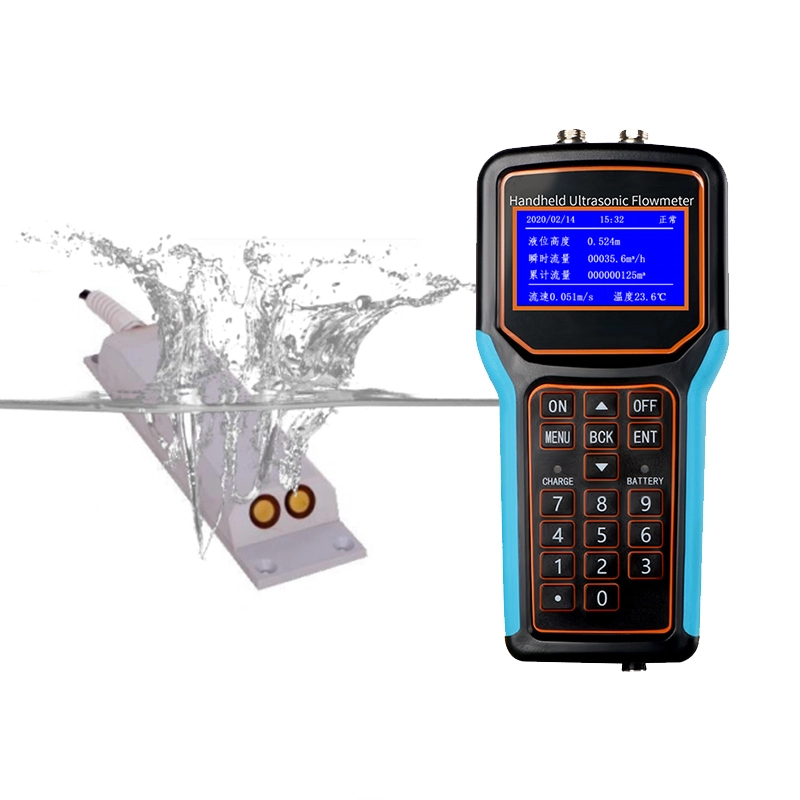

BQ-DUF-P Doppler Ultrasonic Flow Meter
BQ-DUF-P
DOPPLER ULTRASONIC FLOW METER
BOQU Doppler ultrasonic flow meter is measured by the principle of ultrasonic Doppler. According to different application scenarios, it can be called river flowmeter, sewer flowmeter, channel flowmeter, farmland irrigation flowmeter, non-full pipe flowmeter Wait. It does not need to cut off the pipeline to install a pipe segment sensor like an electromagnetic flow meter, nor does it need to use a shutoff device, let alone install a fixed weir groove to control the water flow from a fixed outlet. Doppler flowmeter can measure in both clean and muddy water, and can also measure reverse flow velocity.
TECHNICAL PARAMETERS
| Instrument | BQ-DUF-P Doppler ultrasonic flow meter |
Range | Flow rate(m/s) : 0.03~5.00(other range customized) temperature (℃):-10~60(℃) Water depth (m): 0.05~10(it can be extended) |
Accuracy | Flow rate(m/s) : ±1.0% ±1cm/s Temperature (℃) : ±1(℃) Water depth (m) : 0.5%±0.5cm |
Environment Temperature | 0~60℃ |
Power | Battery |
Output | Standard RS485 |
Protection | Portable doppler ultrasonic transmitter:IP65 Doppler ultrasonic sensor : IP68 |
Note: There is a gas pipe in the sensor wiring, which needs to be connected to the atmosphere. Ensure that the cable is not bent, otherwise it will affect the accuracy of liquid level measurement
MAIN FEATURES
- Solve the problem of partial pipe flow measurement
- No need for any standard tank, can be put into use directly
Doppler ultrasonic flow meters are non-intrusive devices that use acoustic vibrations to measure flow rate of liquids
easy use, not need learn cost
RS485 communication output and other variable output, system intelligent control
Fully intelligent, multifunctional, high measurement performance, strong environmental adaptability
CONTACT US
We will reply you in 8 hours after your message .
BQ-DUF-P
DOPPLER ULTRASONIC FLOW METER
BOQU Doppler ultrasonic flow meter is measured by the principle of ultrasonic Doppler. According to different application scenarios, it can be called river flowmeter, sewer flowmeter, channel flowmeter, farmland irrigation flowmeter, non-full pipe flowmeter Wait. It does not need to cut off the pipeline to install a pipe segment sensor like an electromagnetic flow meter, nor does it need to use a shutoff device, let alone install a fixed weir groove to control the water flow from a fixed outlet. Doppler flowmeter can measure in both clean and muddy water, and can also measure reverse flow velocity.
TECHNICAL PARAMETERS
| Instrument | BQ-DUF-P Doppler ultrasonic flow meter |
Range | Flow rate(m/s) : 0.03~5.00(other range customized) temperature (℃):-10~60(℃) Water depth (m): 0.05~10(it can be extended) |
Accuracy | Flow rate(m/s) : ±1.0% ±1cm/s Temperature (℃) : ±1(℃) Water depth (m) : 0.5%±0.5cm |
Environment Temperature | 0~60℃ |
Power | Battery |
Output | Standard RS485 |
Protection | Portable doppler ultrasonic transmitter:IP65 Doppler ultrasonic sensor : IP68 |
Note: There is a gas pipe in the sensor wiring, which needs to be connected to the atmosphere. Ensure that the cable is not bent, otherwise it will affect the accuracy of liquid level measurement
MAIN FEATURES
- Solve the problem of partial pipe flow measurement
- No need for any standard tank, can be put into use directly
Doppler ultrasonic flow meters are non-intrusive devices that use acoustic vibrations to measure flow rate of liquids
easy use, not need learn cost
RS485 communication output and other variable output, system intelligent control
Fully intelligent, multifunctional, high measurement performance, strong environmental adaptability
CONTACT US
We will reply you in 8 hours after your message .
