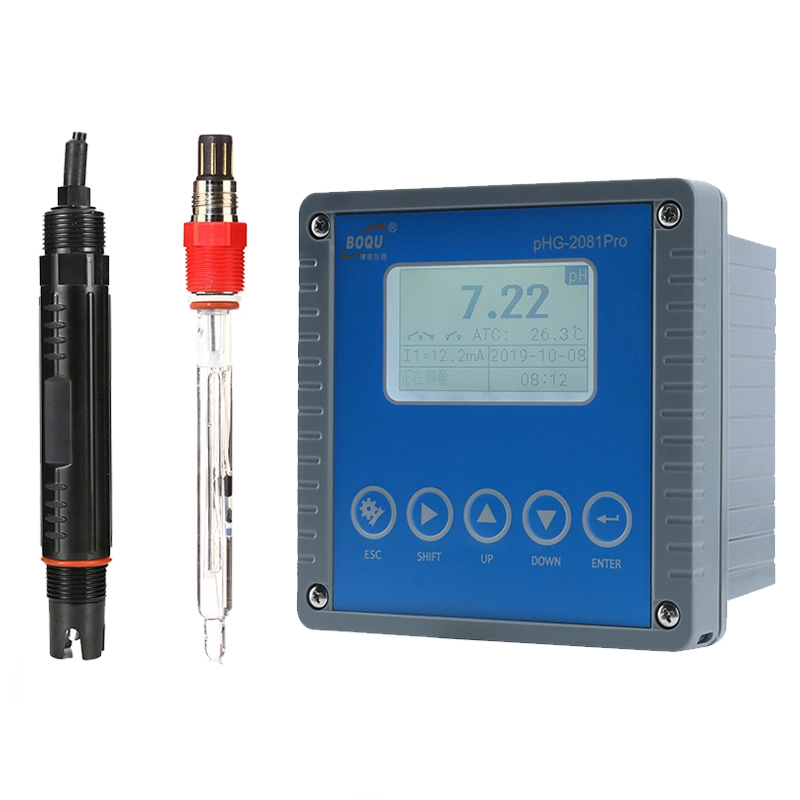

PHG-2081Pro Online PH ORP Meter
PHG-2081Pro
ONLINE PH/ORP METER
Online pH / ORP meters and pH / ORP controllers are one of the most common water quality analysers in use today in water treatment and process plants and yet online pH / ORP meters cause continual problems for their operators. What is needed is a stable, reliable, online pH/ ORP analyzer for a reasonable cost. That is exactly what you get with the BOQU Instrument.
A pH and ORP meter consist of a pH or ORP sensor, transmitter and process adaption, combined to best suit your pH control needs. The online ORP meter from BOQU Instrument provides accurate process pH measurements in a wide range of environments, from ultrapure water to hygienic measurements in a bioreactor to dirty chemical production.
TECHNICAL PARAMETERS
Technical parameters of online orp meter
Model | PHG-2081Pro Online pH / ORP Meter | |
Measurement | pH/ORP/Temperature | |
Measurement range | -2 ~16 pH,-2000 ~2000 mV,-30 ~130 ℃ | |
| Accuracy | 0.05pH, ±0.2℃ | |
Housing material | ABS Flame retardant : V0 | |
Power | 90 – 260V AC 50/60Hz | |
Consumption | 4W | |
Output | Two ways 4-20mA output | |
| Communication | RS485 Modbus | |
Relay | Three relays,5A/250V AC 5A/30V DC | |
Temperature.Comp | PT1000/NTC10K | |
| Dimension | 144×144×104mm | |
| Hole size | 138*138mm | |
Protection | IP65 | |
Data logger | 1000times | |
Language | English/简体中文 | |
Installation | Panel/Wall/Pipe mounted | |
INTRODUCTION
PH/ ORP analyzer introduction from Boqu
CONTACT US
We will reply you in 8 hours after your message .
PHG-2081Pro
ONLINE PH/ORP METER
Online pH / ORP meters and pH / ORP controllers are one of the most common water quality analysers in use today in water treatment and process plants and yet online pH / ORP meters cause continual problems for their operators. What is needed is a stable, reliable, online pH/ ORP analyzer for a reasonable cost. That is exactly what you get with the BOQU Instrument.
A pH and ORP meter consist of a pH or ORP sensor, transmitter and process adaption, combined to best suit your pH control needs. The online ORP meter from BOQU Instrument provides accurate process pH measurements in a wide range of environments, from ultrapure water to hygienic measurements in a bioreactor to dirty chemical production.
TECHNICAL PARAMETERS
Technical parameters of online orp meter
Model | PHG-2081Pro Online pH / ORP Meter | |
Measurement | pH/ORP/Temperature | |
Measurement range | -2 ~16 pH,-2000 ~2000 mV,-30 ~130 ℃ | |
| Accuracy | 0.05pH, ±0.2℃ | |
Housing material | ABS Flame retardant : V0 | |
Power | 90 – 260V AC 50/60Hz | |
Consumption | 4W | |
Output | Two ways 4-20mA output | |
| Communication | RS485 Modbus | |
Relay | Three relays,5A/250V AC 5A/30V DC | |
Temperature.Comp | PT1000/NTC10K | |
| Dimension | 144×144×104mm | |
| Hole size | 138*138mm | |
Protection | IP65 | |
Data logger | 1000times | |
Language | English/简体中文 | |
Installation | Panel/Wall/Pipe mounted | |
INTRODUCTION
PH/ ORP analyzer introduction from Boqu
